Industrial entrance gates fail in specific, predictable ways. The ground track fills with compacted debris — mud, gravel chips, forklift rubber — and the rollers start binding. The motor compensates by drawing more current. Nobody notices until the circuit breaker trips during a shift change, or the gate stalls halfway open with a truck waiting. At that point, the conversation about "low maintenance" that happened during procurement sounds different.
The JHR Industrial Heavy Duty Cantilever Gate removes the ground track from the system entirely. The gate suspends from an overhead carriage bolted to a reinforced post on one side of the opening. Nothing crosses the driveway at ground level. Debris, standing water, heavy vehicle crossings — none of it touches the operating mechanism. The gate just slides.
Clear spans up to 16 meters, no center post, no ground prep beyond the foundation on the motor side. The frame is 6063-T5 aluminum alloy — comparable tensile strength to mild structural steel, 35 to 40 percent of the weight. Motor sits either exposed on an external bracket for easy site access, or housed inside the post for protected installations. Both configurations run the same control interfaces: RF remote, RFID, keypad, loop detector, BMS integration. In case power failure,the gate can also be manual controlled.
Currently running in manufacturing plants, logistics centers, and government facilities. That's the application background for why the design is what it is.
Most gate types are constrained by the same variable: where does the gate go when it's open. A slider needs side wall. A cantilever needs a post and counterbalance zone. A swing gate needs a clear arc. On wide industrial openings — a stadium vehicle gate, a logistics yard entrance, a school campus perimeter — that side space often doesn't exist in a usable form, or the opening is wide enough that no standard gate leaf can cover it without a center post breaking up the clear span.

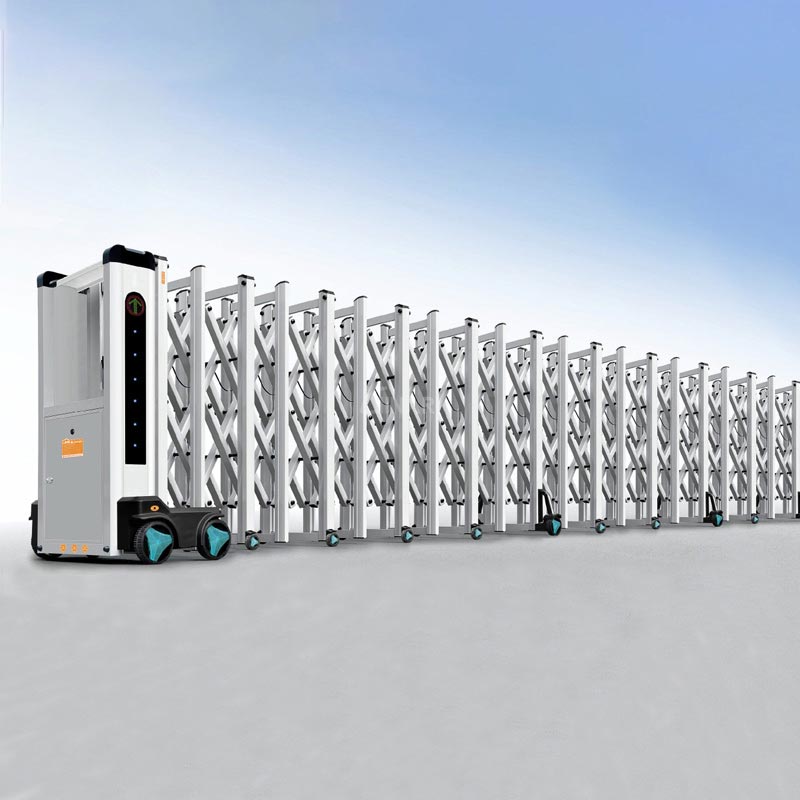

The accordion structure of the JHR Industrial Retractable Gate sidesteps this. The gate extends across the opening in linked panels; when it opens, those panels compress into a stack at one side. A 20-meter gate pulls back into under 3 meters. At 40 meters — the maximum in this range — the retracted footprint is still a fraction of what any other gate type would need for the same span.
Frame material is either 6063-T5 aluminum alloy or 304 stainless steel, depending on what the operating environment actually demands. Same caster and track hardware across both. Manual push or electric drive; full range of access control options on the motorized versions.
JHR retractable gates are running in manufacturing plants, logistics warehouses, school campuses, stadiums, and government facilities. Those aren't aspirational applications — they're where the current installed base sits.
The side clearance problem on wide industrial entrances comes up in a specific way. The project spec calls for a 16- or 25-meter clear opening — wide enough for two trucks side by side, or for oversized equipment access. The structural engineer signs off. Then someone measures the wall space available for the gate to retract into, and the number is half of what a single-panel slider would need. The opening is possible; the gate that serves it doesn't fit.

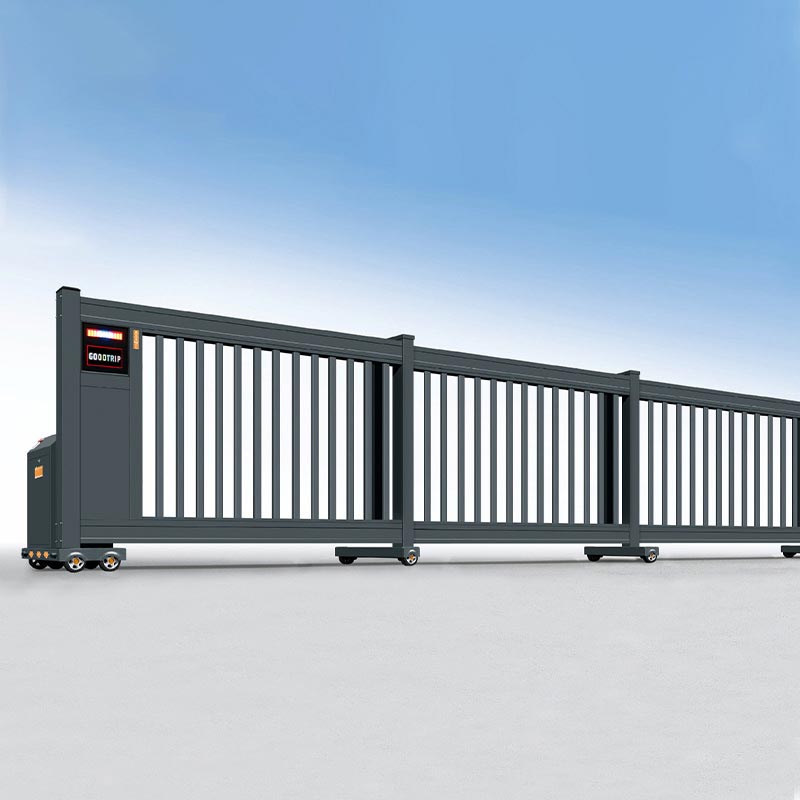

The JHR Industrial Telescopic Sliding Gate handles this by splitting the panel into two to five sections running on parallel ground tracks. When the gate opens, the sections slide back simultaneously, stacking behind the lead panel at the motor post. A 25-meter opening that would demand 20 meters of unobstructed wall for a single-panel gate needs roughly 8 to 10 meters in a three-section configuration. That's not a marginal improvement — it's the difference between a gate that fits the site and one that doesn't.
Frame throughout is reinforced 6063-T5 aluminum alloy. Electric drive is standard, with soft-start and soft-stop on the motor. Full control interface options: RF remote, RFID, keypad, loop detector, BMS integration via RS485. Standard spans from 6 m to 25 m; heights from 1.5 m to 3.0 m. Custom dimensions on engineering review.
Currently deployed in manufacturing plants, logistics distribution centers, commercial perimeter security, and public facility access control. That's where the product has been tested against actual industrial duty cycles, not where it's intended to go.

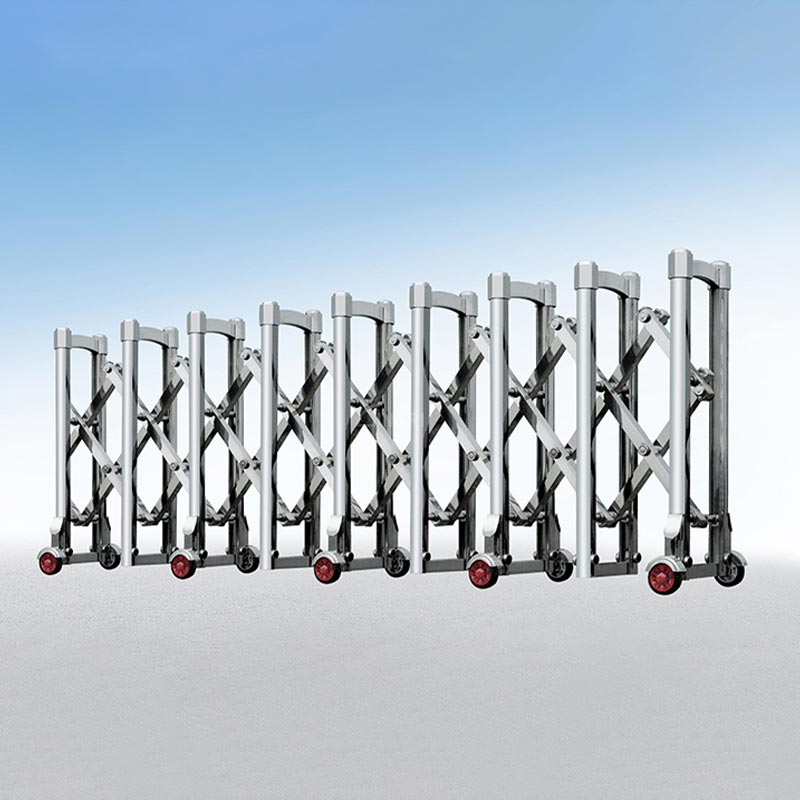

JHR Manual Retractable Barricade is a portable foldable aluminum and stainless steel barrier with adjustable 2–10 meter width, brake wheels and secure locking, requiring no power or complex installation for easy deployment, storage and temporary access control at events, construction sites and parking lots.

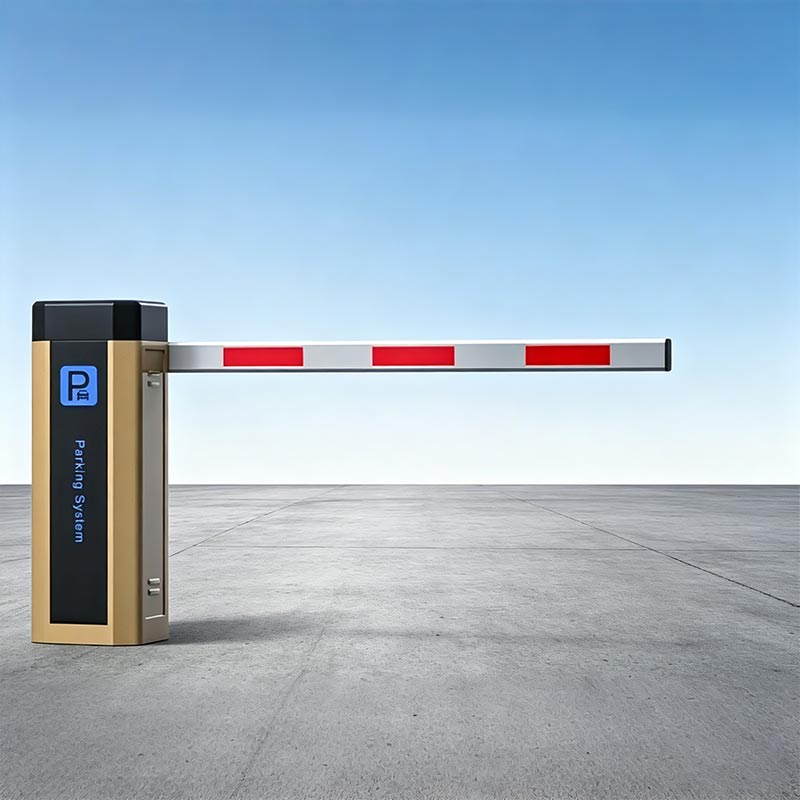

JHR Boom Barrier is a high-efficiency automated vehicle access control system with fast 1.5–4 second operation, durable aluminum or steel arm, soft-stop motor protection, safety detection sensors and wide compatibility with various access devices, ideal for parking lots, communities and commercial checkpoints.

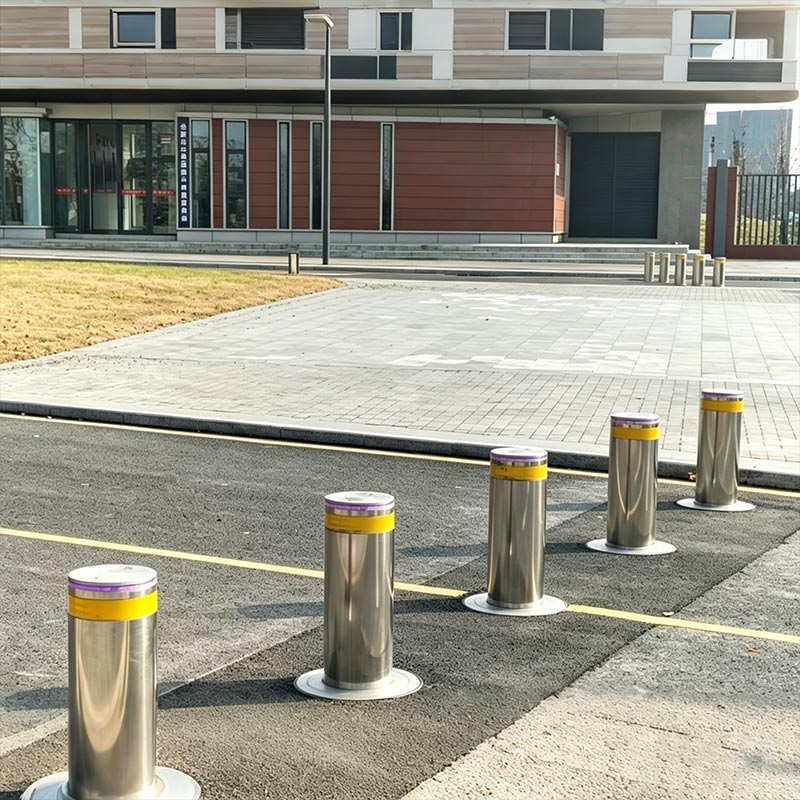

Security Bollards come in fixed, removable and automatic rising types made of heavy-duty steel or stainless steel, delivering durable vehicle blocking and pedestrian access, with hydraulic/electric automated models supporting continuous operation, emergency manual override and access control integration for reliable perimeter security across commercial, government and public sites.
Aluminum offers the perfect balance of strength, lightweight properties, and corrosion resistance. Unlike steel, aluminum never rusts—eliminating the need for regular painting or galvanizing. Unlike wood, aluminum won't rot, warp, crack, or suffer from insect damage. With a premium powder-coated finish, aluminum gates require only occasional cleaning with soap and water, making them virtually maintenance-free for decades .
JHR uses high-grade aluminum profiles with structural thicknesses ranging from 2.0mm to 3.0mm depending on the gate type and application. All structural components meet or exceed industry standards for residential and commercial applications.
Yes. Aluminum naturally resists saltwater corrosion, making it ideal for coastal installations. For added protection in marine environments, we offer Qualicoat Seaside certification powder coating—a super-durable finish specifically formulated to withstand harsh coastal conditions .
Our standard color RAL 9011 Graphite Balck and RAL 7012 Basalt Grey.We also offer the full RAL color palette with multiple finish options including matte, gloss, super-matt, and textured finishes. Wood grain finishes that replicate the natural beauty of timber are also available, giving you the aesthetic of wood without the maintenance headaches .
Absolutely. Aluminum is 100% recyclable without any loss of quality, making it one of the most sustainable building materials available. When you choose JHR aluminum gates, you are selecting a product that can be recycled indefinitely at the end of its long service life .
With proper maintenance—primarily regular cleaning with mild soap and water—our aluminum gates typically last 20 to 30 years or more. The powder-coated finish protects against fading and corrosion, while the aluminum substrate never rusts or deteriorates .
For a single pedestrian gate, the opening width between your posts or walls should be approximately 30mm wider than the physical width of the gate. This clearance ensures smooth operation without binding. Measure at ground level and again at the top, as posts may not be perfectly parallel . Contact JHR team, we will provide a measurement instruction manual.
Measure the clear opening width between your brick pillars or support posts. The total physical width of your double gates should be 30mm to 60mm less than this measurement to allow proper clearance for hinges and operation. Always take measurements at multiple heights to account for any slope or unevenness .Contact JHR team, we will provide a measurement instruction manual.
Yes. JHR specializes in custom-sized gates to fit any opening. While some design variations have preset height limitations, we offer made-to-measure widths for virtually all our gate styles. Contact our sales team with your specific dimensions for a quotation .
Slopes require careful consideration. For swing gates, verify that the driveway surface does not rise where the gate swings inward—the gate could strike the ground during opening. For sliding and cantilever gates, slopes are less problematic as the gate moves laterally. We recommend providing slope measurements and photos for our technical team to advise on the best solution .
Yes, provided your existing posts are structurally sound and appropriately sized for the gate weight and wind load. Posts must be vertically plumb and securely anchored in concrete. For optimal results, we recommend using JHR aluminum posts designed specifically for our gate systems .
Yes. All JHR gates are supplied complete with all necessary hardware including hinges, latches, lock sets, and keys. Double gates also include drop bolts. Our fittings are manufactured from stainless steel or galvanized materials to prevent corrosion and ensure long-term reliability .
Our aluminum posts feature base plates that can be secured to existing concrete surfaces using appropriate mechanical anchors, or they can be set into concrete foundations for new installations. For maximum stability, we recommend concreting posts at least 600mm deep .
Floor-mounted hinges are required when installing gates on aluminum posts. Due to the hollow profile of aluminum posts, accessing the bolts for standard wall-mounted bottom hinges is impossible. Floor-mounted hinges provide secure anchoring and are included with our aluminum post systems .
For experienced DIYers with basic tools, single pedestrian gates can typically be installed in 30-60 minutes. Double driveway gates and automated systems require more expertise. We provide detailed installation instructions with every order and recommend professional installation for complex projects or automated gates .
Yes. All our swing and sliding gates are designed and reinforced specifically for automation. The lightweight yet strong aluminum construction reduces stress on motors and hardware, extending the life of your automation system .
We offer a complete range of automation solutions including swing gate operators (for double and single swing gates), sliding gate motors (for tracked and cantilever gates), telescopic gate drives, and retractable gate automation. All systems include remote control, and smart options integrate with WiFi, smartphone apps, and home automation platforms.
Yes, JHR supplies complete automation kits including motors, control boards, remote controls, safety photocells, and flashing lights. For safety and compliance reasons, we recommend professional installation for all automated gate systems.
All JHR automated gate systems include safety photocells (infrared beams) that detect obstacles and reverse gate movement. Additional safety features include emergency stop buttons, anti-crush protection, and compliance with international safety standards including Gate Safe recommendations .
Aluminum weighs approximately one-third as much as steel for equivalent strength. This weight reduction means you can use smaller, more affordable automation motors, and your automation system will experience less wear over time, extending its operational life .
Simply wash with mild soap and warm water using a soft cloth or sponge every few months. Rinse thoroughly with clean water. Avoid pressure washers, abrasive cleaners, and harsh chemicals that could damage the powder-coated finish .
For manual gates, lubricate hinges and locks every 6 months or when squeaking appears. For high-traffic or automated gates, lubricate every 3 months. Use silicone-based spray lubricants or WD-40 Specialist—avoid heavy greases that attract dirt and debris .
First, check that hinge screws are tight. If sagging persists, adjust hinge alignment by slightly lifting the gate while tightening screws. For severe sagging, install an adjustable anti-sag kit or check if posts have shifted. Aluminum gates rarely sag if properly installed, but ground settlement can affect post alignment .
Lightly sand the scratched area with fine-grit sandpaper, clean thoroughly, then apply matching touch-up paint (available from JHR). Apply in thin layers, allowing each coat to dry. Finish with a clear protective sealant for maximum durability .
No. Unlike wood gates that need staining or sealing every 1-2 years, or steel gates that require repainting when rust appears, powder-coated aluminum gates never need repainting. The factory-applied powder coating is baked on for permanent adhesion and durability .
Yes. JHR aluminum gates feature multi-point locking systems, reinforced frames, and anti-lift designs that provide excellent security. The material is strong enough to resist forced entry while being lightweight for smooth operation. For automated gates, integrated safety systems prevent unauthorized access .
Absolutely. Our gates include finger-safe hinge designs and optional anti-climb features. For automated systems, safety photocells and obstruction detection ensure the gate stops and reverses if anything enters its path, protecting children and pets from injury .
JHR gates include gravity latches and optional hydraulic closers that keep gates securely closed. For exposed locations, we recommend open-slat or picket designs rather than solid board gates to reduce wind loading. Our cantilever and sliding gates are inherently wind-resistant as they move laterally rather than swinging .
JHR offers a comprehensive warranty covering manufacturing defects. Aluminum structures are warranted against corrosion and material defects for up to 10 years depending on the product line. Automation components carry standard manufacturer warranties. Contact our team for specific warranty terms for your project.
JHR manufactures and supplies gates on a global basis. For local projects, we can recommend certified installation partners in your area. International customers receive detailed installation manuals and technical support via phone, email, and video consultation to ensure successful installation anywhere in the world .
