There's a reason more installers and property owners are moving away from tracked gates — and it's not just about the look. Ground rails collect debris, freeze over in cold climates, and eventually warp the alignment of the gate itself. The JHR Aluminum Cantilever Sliding Gate was built around a different idea: remove the track entirely, and most of the long-term problems disappear with it.
The frame is structural-grade aluminum alloy throughout — not a steel core with an aluminum skin, but solid alloy from post to panel. Powder-coated finish goes on over that, and it doesn't peel, blister, or need refreshing the way painted steel does. In coastal areas or high-humidity environments, that distinction matters more than most spec sheets let on.

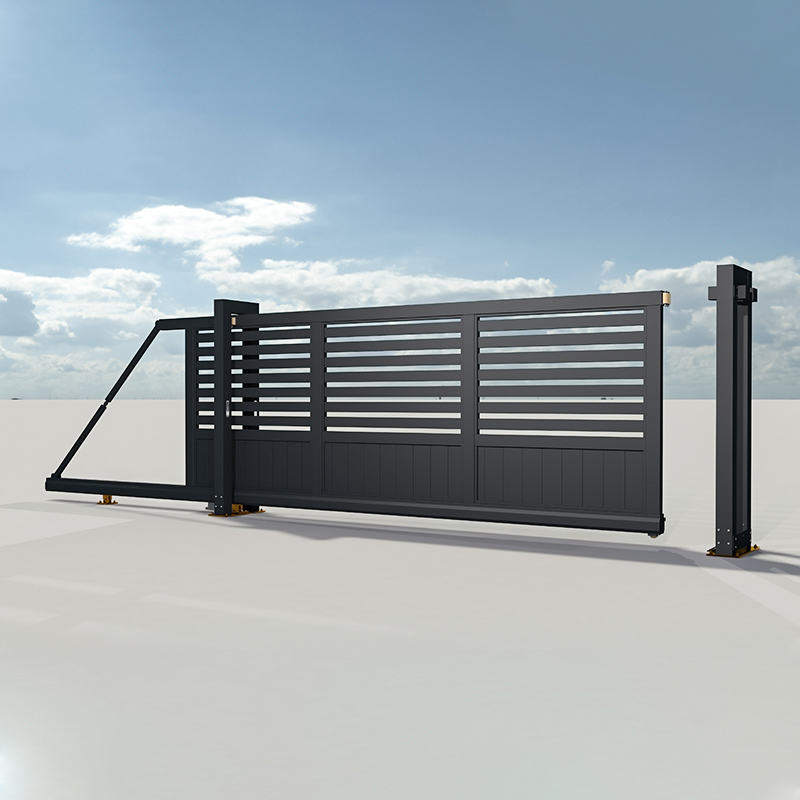

It opens and closes on a cantilever mechanism: a set of roller carriages mounted to fixed posts carry the gate's weight entirely above ground. No ground contact means no seasonal heaving, no accumulated grit jamming the movement, and no trip hazard across the driveway. The gate itself moves quietly enough that most people don't register it until it's already open.
Available in manual push or motorized configurations. Custom-built to your opening dimensions. Fifteen years from installation, it should still operate the same way it did on day one.
An entrance gate is the first thing visitors see, and for properties where that impression actually matters, the difference between a decorative gate and a forgettable one comes down to craftsmanship and material choice.

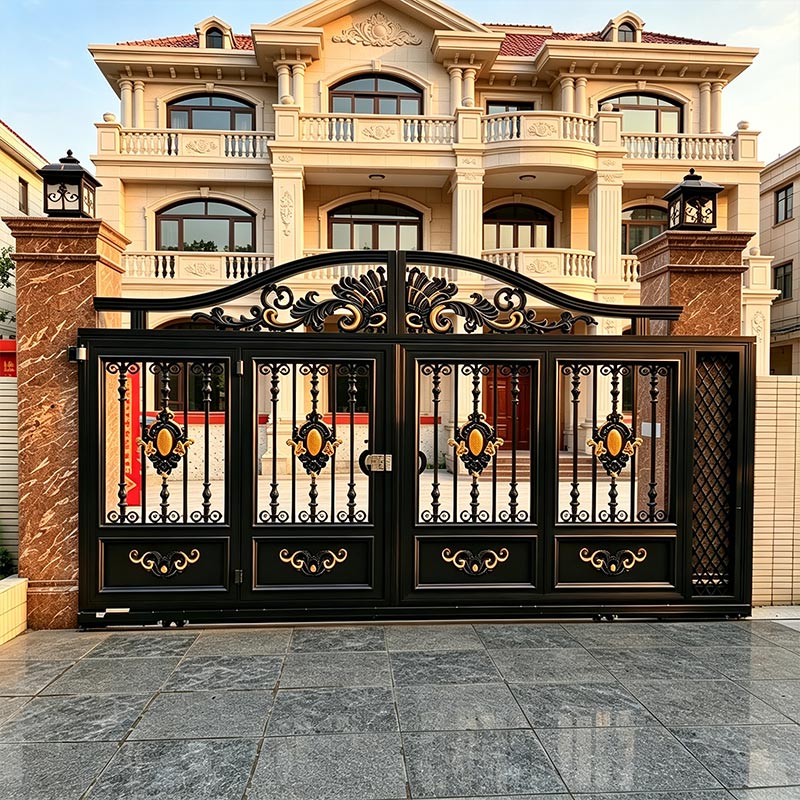

The JHR Luxury Design Sliding Gate started from a specific problem: classical European gate aesthetics had almost always been done in wrought iron or steel, which meant rust, periodic repainting, and structural weight that eventually stresses the track and foundation. We built this series in 6063-T5 aluminum alloy instead — the proportions and ornamental detail stay; the maintenance burden doesn't.
The gate moves on a heavy-duty track system with vibration-dampening rollers. It's quiet in operation. The decorative castings — scrolls, floral motifs, arched tops — are cast aluminum, matched or contrasted in color to the frame. Every gate is manufactured against a specific order, so the dimensions and finish are worked out before anything goes into production.
For estates, private villas, and institutional entrances where the gate is part of the architectural statement: this is what JHR builds.
Some driveways don't have the side space a standard sliding gate needs. The gate opens, travels along the wall, and runs out of room before it clears the opening — or the property boundary cuts across exactly where the retracted gate would sit. On paper it looks fine; on site it doesn't work.
The JHR Corner Sliding Gate was designed for that specific situation. The gate is divided into articulated panels connected by pivoting joints. When the gate opens, the panels follow a curved stainless steel guide rail and fold around the corner, traveling along the inner boundary wall rather than straight back from the opening. The driveway stays clear; the gate disappears into the corner.
The frame is aluminum alloy throughout — rust-proof, lighter than steel, and easier on the motor over its operating life. Finish and panel design are customized to the project. The mechanism handles openings up to 10 meters and can be automated with standard sliding gate motors.
It's a specific solution to a specific problem. If your site has that problem, this is how it gets resolved.
The side wall problem comes up constantly on wider driveways. You need a gate that covers a 6- or 8-meter opening, but there's only 2 to 3 meters of clear wall to retract into — not enough for a single-leaf slider, and a swing gate creates a different set of problems with traffic flow. Most of the time, the property owner just accepts a narrower gate than they wanted. That's the gap the JHR Aluminum Overlapping Gate fills.
The gate body splits into two or three leaves. When the gate opens, the leaves stack behind one another on a synchronized track system — the same principle as a collapsing telescope — and the whole assembly tucks into a fraction of the space a single panel would need. A 6-meter opening pulls back into roughly 2 to 2.5 meters of side clearance. On sites where that side clearance just doesn't exist in a single run, it makes the difference between a functional entrance and a compromised one.
Frame material is 6063-T5 aluminum alloy throughout. It runs lighter than structural steel by around 40%, which matters when you're asking a motor to synchronize multiple moving leaves over years of daily cycling. Rust isn't part of the maintenance conversation — aluminum oxide forms naturally on the surface and the powder coat goes over that. In coastal installations and high-humidity climates, this is the material choice that holds up.

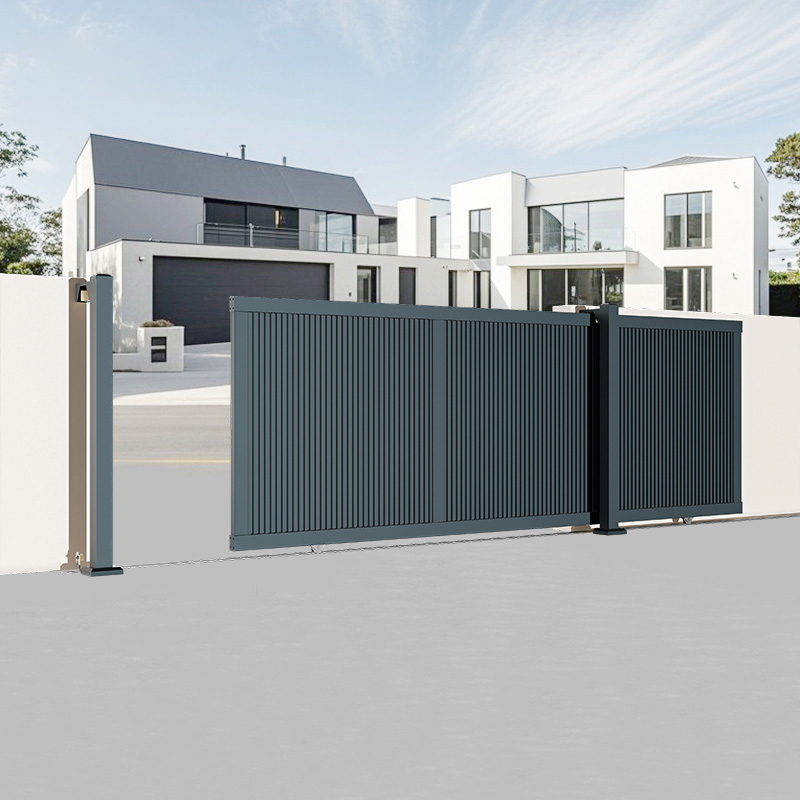

If you've specified or installed gates for any length of time, you know which type generates the fewest callbacks: the tracked slider. The operating principle hasn't changed much because it doesn't need to. The panel rides a ground track on double rollers, the track takes the weight, and the whole thing moves along a fixed path with no guesswork involved. When it's properly installed, it just runs.
JHR's tracked sliding gate is built on that same logic — nothing experimental about the mechanism, but the material and finish choices matter. The frame is 6063-T5 aluminum alloy, which runs about 40% lighter than steel at the same structural section. That weight difference is relevant in practice: the rollers wear slower, the motor works less hard, and the track hardware holds alignment longer before any adjustment is needed. Custom widths from 2.0 m to 12.0 m, any RAL color, any infill style. Works with every sliding gate motor brand on the market.
This is our most ordered product. That's not marketing language — it's what the order books show, month after month.
There's a reason more installers and property owners are moving away from tracked gates — and it's not just about the look. Ground rails collect debris, freeze over in cold climates, and eventually warp the alignment of the gate itself. The JHR Aluminum Cantilever Sliding Gate was built around a different idea: remove the track entirely, and most of the long-term problems disappear with it.
The frame is structural-grade aluminum alloy throughout — not a steel core with an aluminum skin, but solid alloy from post to panel. Powder-coated finish goes on over that, and it doesn't peel, blister, or need refreshing the way painted steel does. In coastal areas or high-humidity environments, that distinction matters more than most spec sheets let on.
It opens and closes on a cantilever mechanism: a set of roller carriages mounted to fixed posts carry the gate's weight entirely above ground. No ground contact means no seasonal heaving, no accumulated grit jamming the movement, and no trip hazard across the driveway. The gate itself moves quietly enough that most people don't register it until it's already open.
Available in manual push or motorized configurations. Custom-built to your opening dimensions. Fifteen years from installation, it should still operate the same way it did on day one.
Aluminum offers the perfect balance of strength, lightweight properties, and corrosion resistance. Unlike steel, aluminum never rusts—eliminating the need for regular painting or galvanizing. Unlike wood, aluminum won't rot, warp, crack, or suffer from insect damage. With a premium powder-coated finish, aluminum gates require only occasional cleaning with soap and water, making them virtually maintenance-free for decades .
JHR uses high-grade aluminum profiles with structural thicknesses ranging from 2.0mm to 3.0mm depending on the gate type and application. All structural components meet or exceed industry standards for residential and commercial applications.
Yes. Aluminum naturally resists saltwater corrosion, making it ideal for coastal installations. For added protection in marine environments, we offer Qualicoat Seaside certification powder coating—a super-durable finish specifically formulated to withstand harsh coastal conditions .
Our standard color RAL 9011 Graphite Balck and RAL 7012 Basalt Grey.We also offer the full RAL color palette with multiple finish options including matte, gloss, super-matt, and textured finishes. Wood grain finishes that replicate the natural beauty of timber are also available, giving you the aesthetic of wood without the maintenance headaches .
Absolutely. Aluminum is 100% recyclable without any loss of quality, making it one of the most sustainable building materials available. When you choose JHR aluminum gates, you are selecting a product that can be recycled indefinitely at the end of its long service life .
With proper maintenance—primarily regular cleaning with mild soap and water—our aluminum gates typically last 20 to 30 years or more. The powder-coated finish protects against fading and corrosion, while the aluminum substrate never rusts or deteriorates .
For a single pedestrian gate, the opening width between your posts or walls should be approximately 30mm wider than the physical width of the gate. This clearance ensures smooth operation without binding. Measure at ground level and again at the top, as posts may not be perfectly parallel . Contact JHR team, we will provide a measurement instruction manual.
Measure the clear opening width between your brick pillars or support posts. The total physical width of your double gates should be 30mm to 60mm less than this measurement to allow proper clearance for hinges and operation. Always take measurements at multiple heights to account for any slope or unevenness .Contact JHR team, we will provide a measurement instruction manual.
Yes. JHR specializes in custom-sized gates to fit any opening. While some design variations have preset height limitations, we offer made-to-measure widths for virtually all our gate styles. Contact our sales team with your specific dimensions for a quotation .
Slopes require careful consideration. For swing gates, verify that the driveway surface does not rise where the gate swings inward—the gate could strike the ground during opening. For sliding and cantilever gates, slopes are less problematic as the gate moves laterally. We recommend providing slope measurements and photos for our technical team to advise on the best solution .
Yes, provided your existing posts are structurally sound and appropriately sized for the gate weight and wind load. Posts must be vertically plumb and securely anchored in concrete. For optimal results, we recommend using JHR aluminum posts designed specifically for our gate systems .
Yes. All JHR gates are supplied complete with all necessary hardware including hinges, latches, lock sets, and keys. Double gates also include drop bolts. Our fittings are manufactured from stainless steel or galvanized materials to prevent corrosion and ensure long-term reliability .
Our aluminum posts feature base plates that can be secured to existing concrete surfaces using appropriate mechanical anchors, or they can be set into concrete foundations for new installations. For maximum stability, we recommend concreting posts at least 600mm deep .
Floor-mounted hinges are required when installing gates on aluminum posts. Due to the hollow profile of aluminum posts, accessing the bolts for standard wall-mounted bottom hinges is impossible. Floor-mounted hinges provide secure anchoring and are included with our aluminum post systems .
For experienced DIYers with basic tools, single pedestrian gates can typically be installed in 30-60 minutes. Double driveway gates and automated systems require more expertise. We provide detailed installation instructions with every order and recommend professional installation for complex projects or automated gates .
Yes. All our swing and sliding gates are designed and reinforced specifically for automation. The lightweight yet strong aluminum construction reduces stress on motors and hardware, extending the life of your automation system .
We offer a complete range of automation solutions including swing gate operators (for double and single swing gates), sliding gate motors (for tracked and cantilever gates), telescopic gate drives, and retractable gate automation. All systems include remote control, and smart options integrate with WiFi, smartphone apps, and home automation platforms.
Yes, JHR supplies complete automation kits including motors, control boards, remote controls, safety photocells, and flashing lights. For safety and compliance reasons, we recommend professional installation for all automated gate systems.
All JHR automated gate systems include safety photocells (infrared beams) that detect obstacles and reverse gate movement. Additional safety features include emergency stop buttons, anti-crush protection, and compliance with international safety standards including Gate Safe recommendations .
Aluminum weighs approximately one-third as much as steel for equivalent strength. This weight reduction means you can use smaller, more affordable automation motors, and your automation system will experience less wear over time, extending its operational life .
Simply wash with mild soap and warm water using a soft cloth or sponge every few months. Rinse thoroughly with clean water. Avoid pressure washers, abrasive cleaners, and harsh chemicals that could damage the powder-coated finish .
For manual gates, lubricate hinges and locks every 6 months or when squeaking appears. For high-traffic or automated gates, lubricate every 3 months. Use silicone-based spray lubricants or WD-40 Specialist—avoid heavy greases that attract dirt and debris .
First, check that hinge screws are tight. If sagging persists, adjust hinge alignment by slightly lifting the gate while tightening screws. For severe sagging, install an adjustable anti-sag kit or check if posts have shifted. Aluminum gates rarely sag if properly installed, but ground settlement can affect post alignment .
Lightly sand the scratched area with fine-grit sandpaper, clean thoroughly, then apply matching touch-up paint (available from JHR). Apply in thin layers, allowing each coat to dry. Finish with a clear protective sealant for maximum durability .
No. Unlike wood gates that need staining or sealing every 1-2 years, or steel gates that require repainting when rust appears, powder-coated aluminum gates never need repainting. The factory-applied powder coating is baked on for permanent adhesion and durability .
Yes. JHR aluminum gates feature multi-point locking systems, reinforced frames, and anti-lift designs that provide excellent security. The material is strong enough to resist forced entry while being lightweight for smooth operation. For automated gates, integrated safety systems prevent unauthorized access .
Absolutely. Our gates include finger-safe hinge designs and optional anti-climb features. For automated systems, safety photocells and obstruction detection ensure the gate stops and reverses if anything enters its path, protecting children and pets from injury .
JHR gates include gravity latches and optional hydraulic closers that keep gates securely closed. For exposed locations, we recommend open-slat or picket designs rather than solid board gates to reduce wind loading. Our cantilever and sliding gates are inherently wind-resistant as they move laterally rather than swinging .
JHR offers a comprehensive warranty covering manufacturing defects. Aluminum structures are warranted against corrosion and material defects for up to 10 years depending on the product line. Automation components carry standard manufacturer warranties. Contact our team for specific warranty terms for your project.
JHR manufactures and supplies gates on a global basis. For local projects, we can recommend certified installation partners in your area. International customers receive detailed installation manuals and technical support via phone, email, and video consultation to ensure successful installation anywhere in the world .
CONTACT US
Do you want a warm and cozy courtyard with an automatic gate and matchingfence? This will not only protect your privacy but also provide convenience andsecurity for your life.
If you have any needs regarding gates and fences, please contact us promptly.We will be happy to assist you.
