What Is an Aluminum Bi-Folding Gate and How Does It Work?

Imagine pulling your car up to your house. You hit a button. An aluminum bi-folding gate starts to move. It has hinged panels. They fold up together right when the entrance opens. Each pair of these panels gathers tightly near its supporting post. This clever trick leaves a huge open space. Your car can pass right through without hitting a thing. This setup really shines for a short driveway. Why? Well, a long sliding gate needs a long track. A big swinging one sweeps across the yard. Both of those might block your favorite parking spots. They could make it a total pain to get in and out of your yard.
Before you spend money on one, map out the exact path of the panels. See exactly where they slide and fold. That folded spot shows you the final resting place of the gate. The opening steps show you the danger zones. Cars, brick walls, and people walking nearby must stay clear of this space.

What Is an Aluminum Bi-Folding Gate?
Most times, you will see two linked panels on each side of the driveway. When closed, they cover the whole gap. When you open them, something cool happens. Each pair bends at the middle hinge, and then they slide back toward the side post. But watch out, you might find other weird setups too. So, always look at your project drawing to check the layout yourself.
Take JHR’s aluminum bi-folding gate. They make it with 6063-T5 aluminum alloy extruded profiles. The company says the opening range is 4.0 to 6.0 meters. You can order sizes cut exactly for your yard. This specific listed design includes a bottom guide channel. It also has special motor options to run things.
Aluminum fights rust great, and it keeps the moving frame light. But wait, real strength comes from other things. Profile thickness, joints, panel sizes, and support posts matter most. Just knowing the metal type will not keep you safe. You still need to know if the gate can beat strong storm winds and handle heavy weight.
The Parts Behind the Folding Motion
Hinges control exactly how the panels bend. The guide and motor decide the speed and steer the gate. Every single part must line up right when builders set it up.
Panels and Hinges
Each panel joins the next one using vertical hinges. The panel by the post turns first. Then, the folding parts pull the second panel along. The exact link setup changes based on what design you pick.
Hinges do heavy lifting every day, so make sure they are tough. Look at how workers bolt them on. Read the care rules. Compare those facts to the gate’s total weight and your daily use. Loose screws make the gate sag. Bad pins throw off the alignment, and you might see ugly gaps when it shuts.
Guide Channel and Posts
JHR’s standard design relies on a bottom guide channel. A nylon roller slides inside that slot to keep your gate perfectly on track. You need flat, paved ground for this. Luckily, you do not need a crazy long track like sliding gates do.
The side posts and underground concrete hold the heavy stuff. They must be super tough to carry the metal panels. They fight the motor’s push and survive heavy winds. Fixing up an old driveway? Check your old stone posts first before bolting on brand new hinges.
Operator and Controls
Special motors push and pull the gate. JHR says their gates work with 110V AC or 220V AC systems. You can open them many ways. Pocket remotes, number keypads, voice intercoms, or card swipers work well. Some folks even use their phones. Read your price quote to know exactly what controls you pay for.
How Does the Gate Open and Close?
An automatic cycle starts in a flash. Your remote sends a signal, and the motor shoves the panels. Hinges force them to move correctly. On JHR’s track design, the bottom roller glides down the channel while the sections fold in like an accordion.
When fully open, they park near the posts. To shut, they unfold across the space and stop at a programmed spot. The installer must test every part. They set travel limits, check the speed, and make sure the gate stops if a bike blocks it.
There is a manual release key. This lifesaver opens the gate if the street power dies. Ask the builder to show you how to pull it. Make sure you can reach the handle easily, and keep the special key in a known spot.
How Much Space Does It Need?
JHR says folded panels take up roughly 10% to 15% of the opening width. That is a good basic rule, but test this math on your own driveway. Ask the builder for a drawing with real numbers. It needs to show the folded panels, the moving space, and the room left for cars.
Grab a tape measure. Check the gap between the gate and parked cars. Measure out to walls and walking paths. Leave room for a repair guy to add grease. A tight driveway might hold the folded gate just fine, but it could create a nasty turning angle for big delivery trucks.
Does your house face a busy street? Fold the gate inward to keep moving metal inside your yard. Check the real path and look up local city laws. Sloped driveways need an extra look because the moving parts must never scrape the ground.

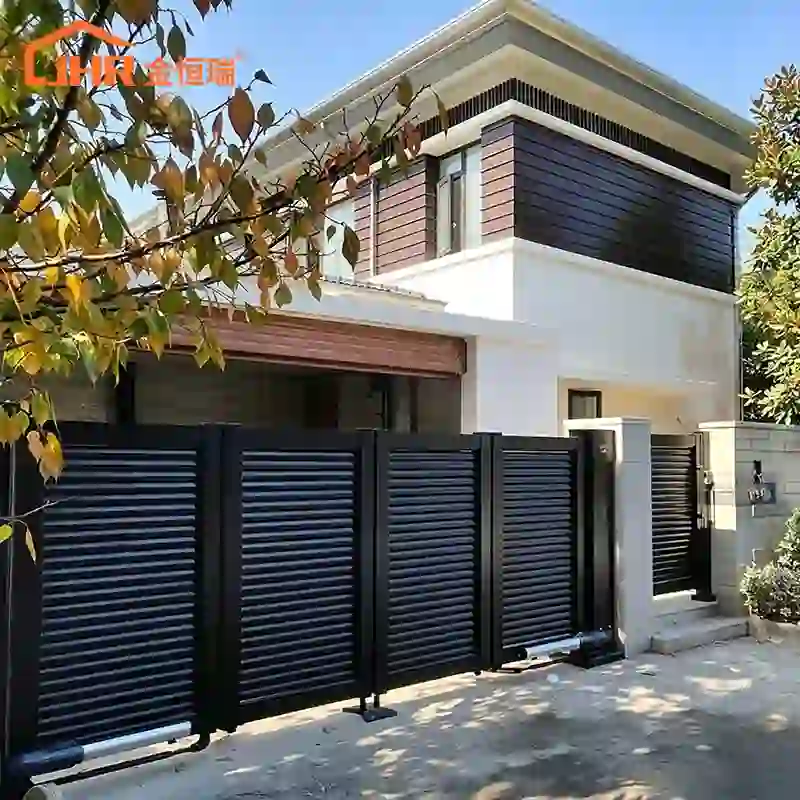

Aluminum Gate

Climate, Installation, and Maintenance
Weather changes how gate paint lasts and decides what hardware you buy. Beach houses need extra care because salt air causes bad rust. Check the paint often and protect spots where different metals rub. Yes, aluminum fights rust. But hinges, screws, and wire boxes still need washing.
Got snow? Check water drains near the track. Think about where you shovel snow, since ice chunks block the bottom guide channel fast. Look at the motor’s temperature rating to make sure it survives freezing cold nights.
For a yard makeover, measure twice and check old concrete. Write down ground slopes, find the power wires, and see where rainwater runs. JHR provides installation drawings and offers remote technical support help.
Read the given rule book. Clean dirty parts, check hinges for damage, and add oil if told. Test the safety sensors. If the gate makes loud noises, stop! Do not run it on auto. Call an expert.
Safety Features to Confirm
Folding gates have moving joints that can pinch fingers fast. They also trap things near the posts. Think about safety in these tight areas.
JHR lists some neat safety stuff. They have electric photocells, offer obstacle auto-reverse, and include a manual release key. Read your order sheet. You might need soft bumper edges, metal guards, or extra sensors depending on your yard.
The UK’s Health and Safety Executive guidance on powered gates explains the need for site-specific risk assessment, suitable protective measures, and maintenance. It also warns that some beams primarily detect vehicles and may be bypassed by pedestrians.
Have a competent installer test the completed system and explain emergency procedures. Applicable compliance requirements depend on the destination market and installation.

Planning a Custom JHR Gate
JHR has cool styles. Pick horizontal slats, vertical pickets, solid privacy boards, or laser-cut infill. Pick custom RAL colors. Think about the wind, too. A solid board catches wind like a sail, so it needs heavy posts.
If cars and people share the entrance, add a walking gate. Make sure folks can walk safely while the big gate moves.
For a starting price quote, send the company your opening width and required height. Tell them your location, send photos, and pick your infill style. Ask for an itemized equipment package and clear drawings before paying.
FAQ
Q1: Does Every Bi-Folding Gate Need a Ground Track?
A: Whether a track is required depends on the size of the gate; larger gates necessitate a track to support their weight.
Q2: Can It Open During a Power Failure?
A: Yes. JHR lists a manual release key. Ask the installer to show you how it works and keep the rule book handy.
Q3: Can It Be Installed on a Slope?
A: Installation on a slope is not recommended. If a slope is present, please provide site photos to the sales representative for an installation assessment.
Q4: Is It Suitable for Frequent Commercial Use?
A: Ask the seller. Tell them your daily cycles and peak traffic. The operator, hinges, and safety gear must handle heavy use.
